SPECIFICATIONS

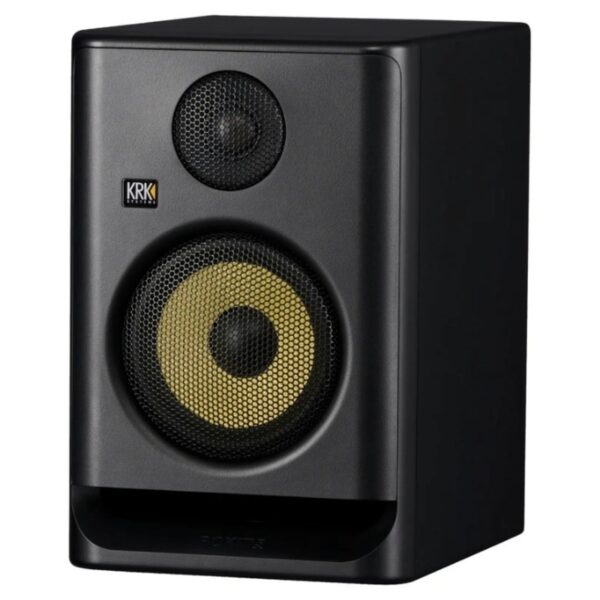

Configuration: 2-Way Bass Reflex
System Type: Active Studio Monitor
Low-Frequency Driver: Woofer, 5-inch, woven Kevlar® aramid fiber cone, ferrite magnet
High-Frequency Driver: Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
Frequency Response: (+/- 3 dB) 54 Hz – 30 kHz
Frequency Range: (+3/-10 dB) 43 Hz – 40 kHz
Crossover Frequency: 2.27 kHz
Amplifier Configuration: Bi-amplified (Class D)
HF Amp Power Output: 20 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
LF Amp Power Output: 35 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
Total Power: 55 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
Total Dynamic Power Output: 130 Watts (Rated Dynamic Power Output is measured as instantaneous peak power at 10% THD+N)
Max SPL: 104 dB (Max SPL is calculated as a function of the driver sensitivity (1W @ 1M) and the Dynamic Power rating)
Coverage Angles: 155° Horizontal x 126° Vertical (Coverage Angles are averaged -6 dB down points from 900 Hz to 9 kHz)

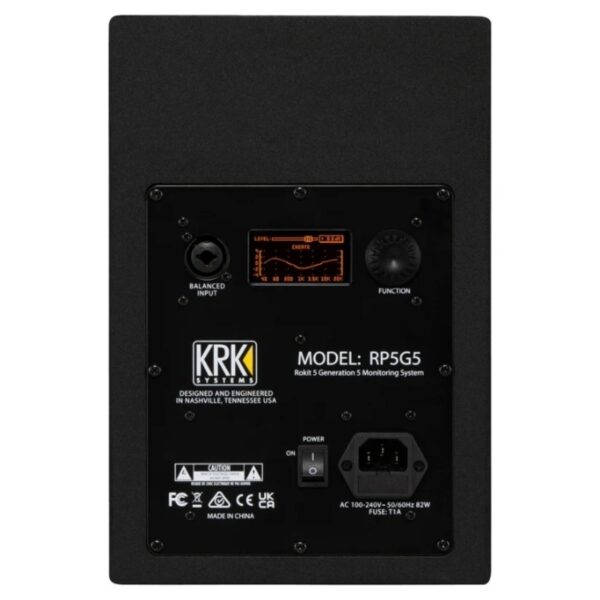

Analog Input Connector: Balanced XLR / 1/4" TRS Combo
SNR (Signal to Noise Ratio): >101.5 dB (Low Sensitivity setting, balanced), >94 dB (High Sensitivity, unbalanced)
AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60 Hz
Fuse Type: 5x20 mm T1A 250V
Enclosure Construction: PVC Vinyl Wrapped MDF
Baffle Construction: Structurally Reinforced High Impact Polystyrene
Product Dimensions: (H x W x D) 11.34” (288 mm) x 7.52” (191 mm) x 9.53” (242 mm)
Product Weight: 10.91 lbs. (4.95 Kg.)
Packaged Weight: 14.33 lbs. (6.5 Kg.)
Packaged Dimensions: (H x W x D) 15.75” (400 mm) x 10.24” (260 mm) x 12.6” (320 mm)

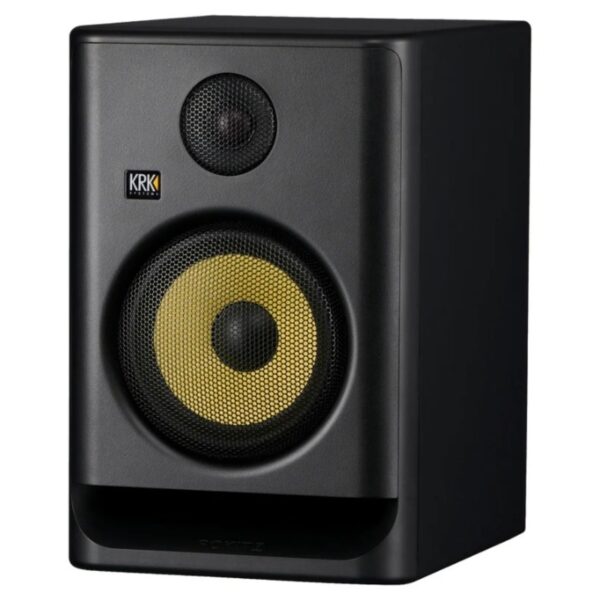

Configuration: 2-Way Bass Reflex
System Type: Active Studio Monitor
Low-Frequency Driver: Woofer, 7-inch, woven Kevlar® aramid fiber cone, ferrite magnet
High-Frequency Driver: Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
Frequency Response: (+/- 3 dB) 45 Hz – 36 kHz
Frequency Range: (+3/-10 dB) 36 Hz - 40 kHz
Crossover Frequency: 1.64 kHz
Amplifier Configuration: Bi-amplified (Class D)
HF Amp Power Output: 48 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
LF Amp Power Output: 97 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
Total Power: 145 Watts (Rated Amplifier Power Output is measured at 1% THD+N)
Total Dynamic Power Output: 234 Watts (Rated Dynamic Power Output is measured as instantaneous peak power at 10% THD+N)
Max SPL: 110 dB (Max SPL is calculated as a function of the driver sensitivity (1W @ 1M) and the Dynamic Power rating)
Coverage Angles: 155° Horizontal x 133° Vertical (Coverage Angles are averaged -6 dB down points from 900 Hz to 9 kHz)

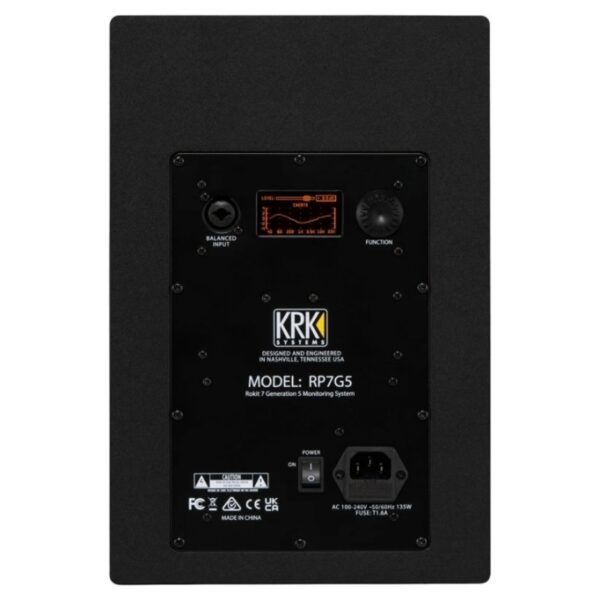

Analog Input Connector: Balanced XLR / 1/4" TRS Combo
SNR (Signal to Noise Ratio): >91.5 dB (Low Sensitivity setting, balanced), >89 dB (High Sensitivity, unbalanced)
AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60 Hz
Fuse Type: 5x20 mm T1.6A 250V
Enclosure Construction: PVC Vinyl Wrapped MDF
Baffle Construction: Structurally Reinforced High Impact Polystyrene
Product Dimensions: (H x W x D) 13.35” (339 mm) x 8.86” (225 mm) x 11.42” (290 mm)
Product Weight: 16.87 lbs. (7.65 Kg.)
Packaged Dimensions: (H x W x D) 18.11” (460 mm) x 12.20” (310 mm) x 14.57” (370 mm)
Packaged Weight: 21.16 lbs. (9.6 Kg.
